描述
規格
| MODEL | FB-3B | FB-6B | FB-10B |
| Diameter (cm) | Ø12.3 | Ø16.0 | Ø19.0 |
| Height (cm) | 26 | 33 | 40 |
| Total volume | 3L | 6.6L | 10L |
| Working volume | 2L | 5L | 7.5L |
-
Headplate
a. pH Electrode
b. D.O. Electrode
c. Acid addition
d. Base addition
e. Anti-foam addition
f. Foam level Detector
g. Sampler Assembly
h. Exhaust Gas Condenser
i. Inoculum
j. Spare Ports -
LCD touch-screen panel-graphic controller
a. TFT LCD
b. Resolution: 800*600 pixels
c. Each parameter (Temperature, Agitation PH, DO, anti-foam) working condition setting
d. With RS485 interface to be connected with PC -
Controller System
a. Temperature control (with temperature sensor)
i. Control range : cooling water+5°C~60°C
ii. Sensor : Pt100Ω
iii. Controller : PID control
b. Agitation controller
i. Drive motor: Sever Motor
ii. Speed 50~1000rpm
iii. Top drive
c. PH Controller (include 1 pc electrode steam-sterilizable and autoclavable)
i. Control range:0~14.00PH
ii. Accuracy:±0.1PH
iii. Controller: PID control iv. Software calibration
d. DO controller (include 1 pc electrode steam-sterilizable and autoclavable)
i. Control range:0~200.0% from agitation and air flow controller
ii. Accuracy:±0.1%
iii. Software calibration
e. Antifoam (include stainless steel electrode. height adjustable)
f. Include 4 pumps for (acid. base. anti-foam. feeding) -
Optional accessories
a.Oil-less air compressor pumpi. Air capacity:32/40L .50/60Hz
ii. Stainless steel tank and two pressure gauge

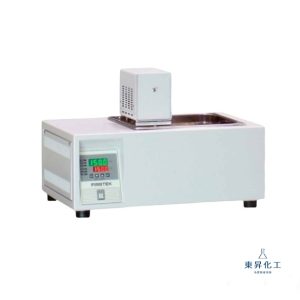

b. Cooling circulator
i. Capacity:6.7L
ii. Working range:0~100°C
