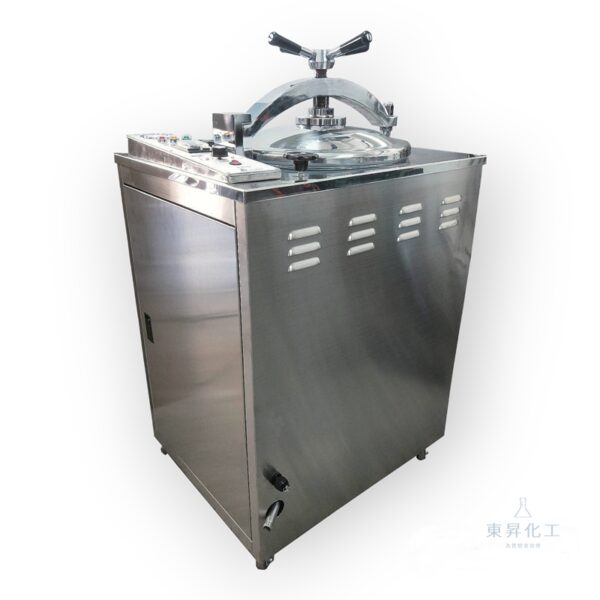

高壓滅菌釜,autoclave,直立式,46~82L | 臺灣製造

  • 組織培養、實驗室、醫療院所、食品業等場合之滅菌使用
  • 依適用情況，有半自動及全自動機型可供選擇
  • 經典款式，本土製造，後續維修服務效率高
  • 可出具合法有效的ISO及衛署醫器認證
加入詢價
貨號: 不提供 分類: ,

描述

Print Friendly, PDF & Email
Volume 內容積+A1:E19 46L (±3%) 63L (±3%) 72L(±3%) 82L (±3%)
Inner Pot Size 內鍋尺寸 ψ30x66cm deep ψ35x66cm deep ψ35x75cm deep ψ40x66cm deep
External Dimensions 外部尺寸 57Lx46Wx80H(cm) (±5%) 63Lx51Wx80H(cm) (±5%) 63Lx51Wx85H(±5%) 71Lx57Wx85H(cm) (±5%)
Voltage 電壓 220V
Current 電流 20A
Heater 加熱器 4000W
Maximum Sterilization Temperature 最高滅菌溫度 127℃
Maximum Operating Pressure 最高滅菌壓力 1.5kg/cm2
Material 材質 Body: Stainless steel SUS304,
Lid: Stainless steel SUS304, hydraulic one-piece molding, one-axis operation,
Gasket: Silicone one-piece molding
鍋體:不鏽鋼SUS304
鍋蓋: 不鏽鋼SUS304，油壓一體成型，一軸操作式
墊圈:矽膠一體成型
Shell Treatment 外殼處理 Stainless steel SUS304
滅菌流程 Manual sterilization process: Heating → When sterilization temperature and pressure are reached → Start timing → Alarm → Manual exhaust pressure relief → Pressure gauge returns to zero → Only then can the pot door be opened → Turn off the power.

Automatic sterilization process: Heating → When sterilization temperature and pressure are reached → Start timing → Alarm → Exhaust pressure relief → Pressure gauge returns to zero before opening the pot door → Turn off the power.

半自動滅菌過程:加熱→達到滅菌溫度及壓力時→開始計時→示鈴→手動排氣洩壓→壓力錶歸零→方可開啟鍋門→關閉電源

全自動滅菌過程:加熱→達到滅菌溫度及壓力時→開始計時→示鈴→排氣洩壓→壓力錶歸零方可開啟鍋門→關閉電源
Safety devices 安全裝置 1. Pressure comparison table
2. Pressure control switch
3. Automatic pressure relief of pressure safety valve
4. Emergency pressure relief device
5. Heating indicator light, water shortage indicator light



附件 1. 壓力比對錶
2. 壓力控制開關
3. 壓力超壓安全閥自動洩壓\
4. 緊急洩壓裝置
5. 加熱指示燈、缺水指示燈
*置物滅菌籃2只

#滅菌鍋#消毒鍋#高溫高壓滅菌釜#滅菌器#高溫滅菌器#高溫高壓滅菌器#YUX-Q30#YUX-Q35#YUX-Q40
